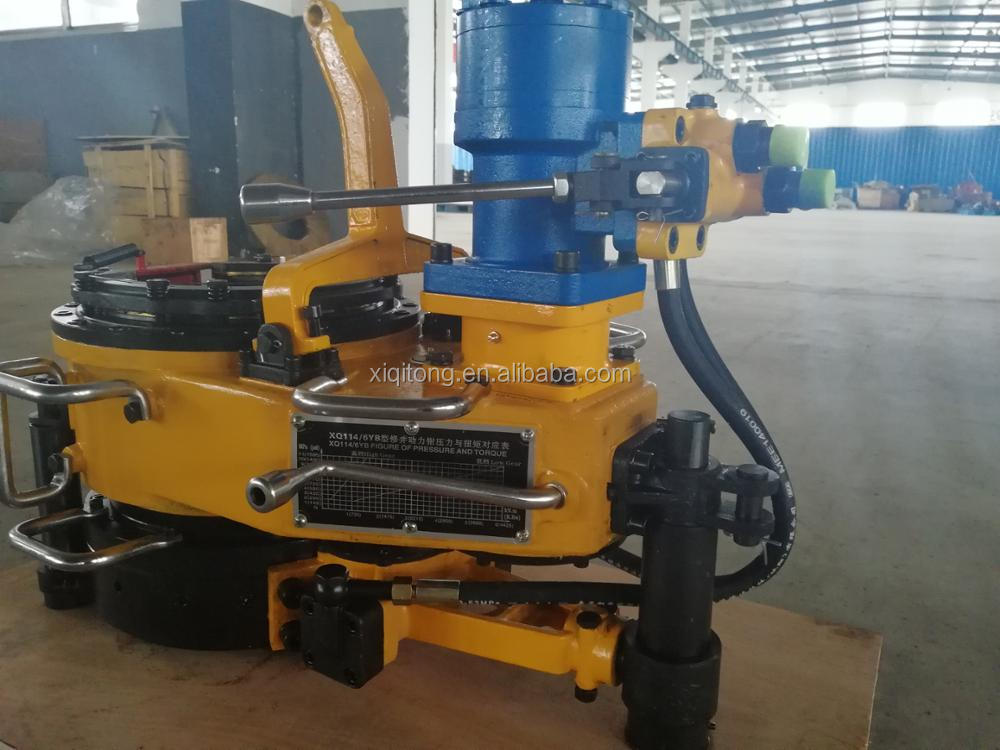

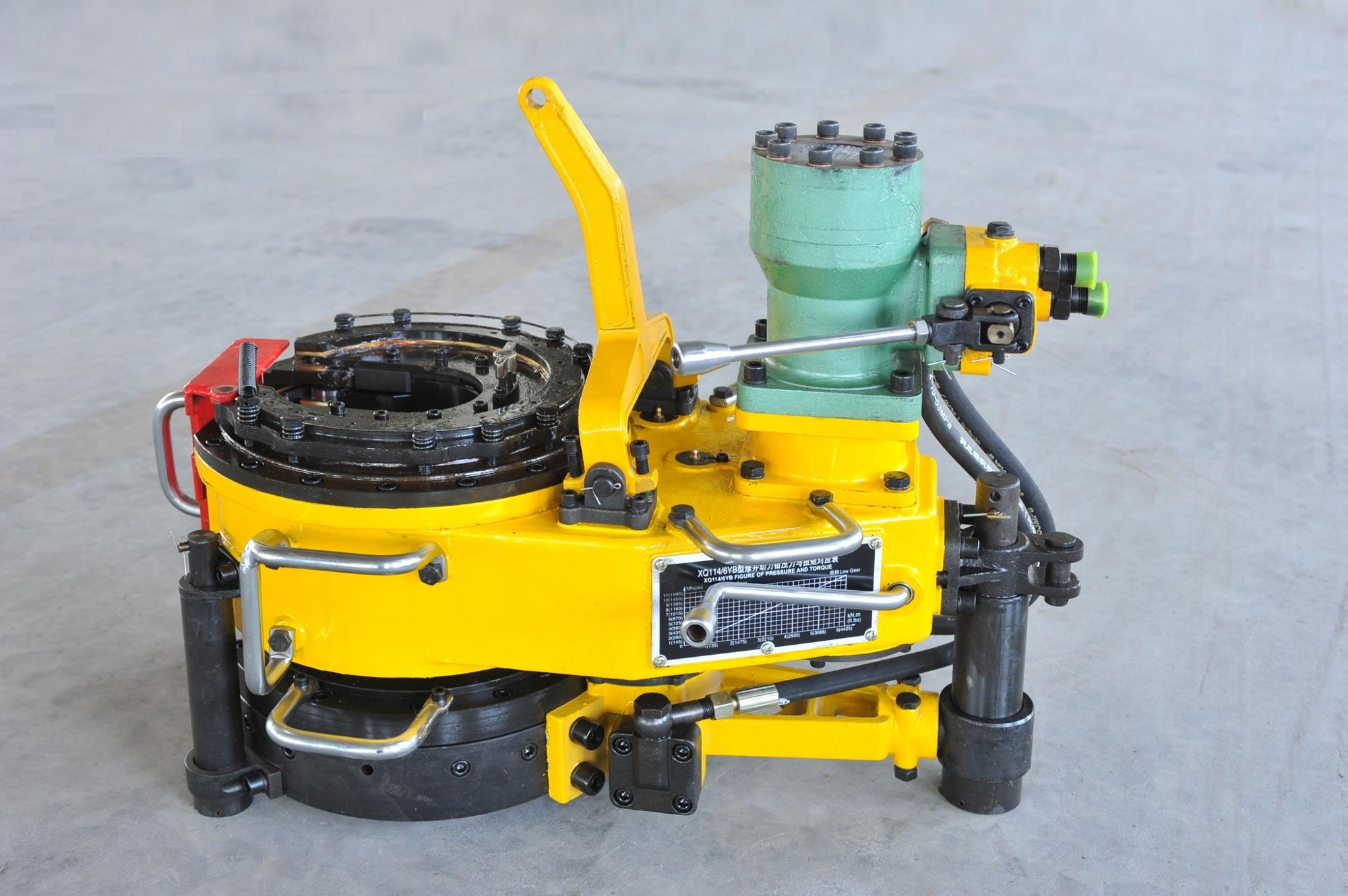

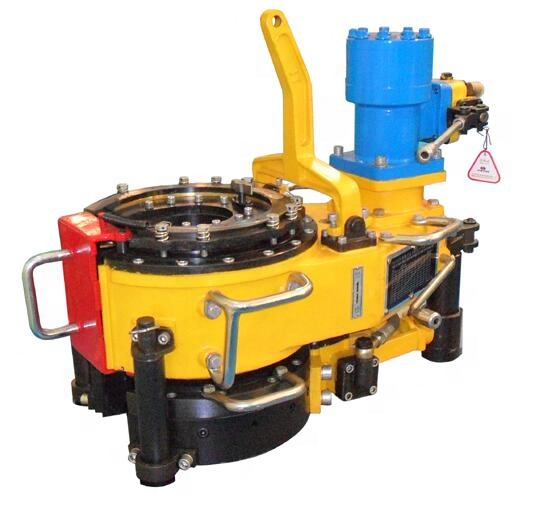

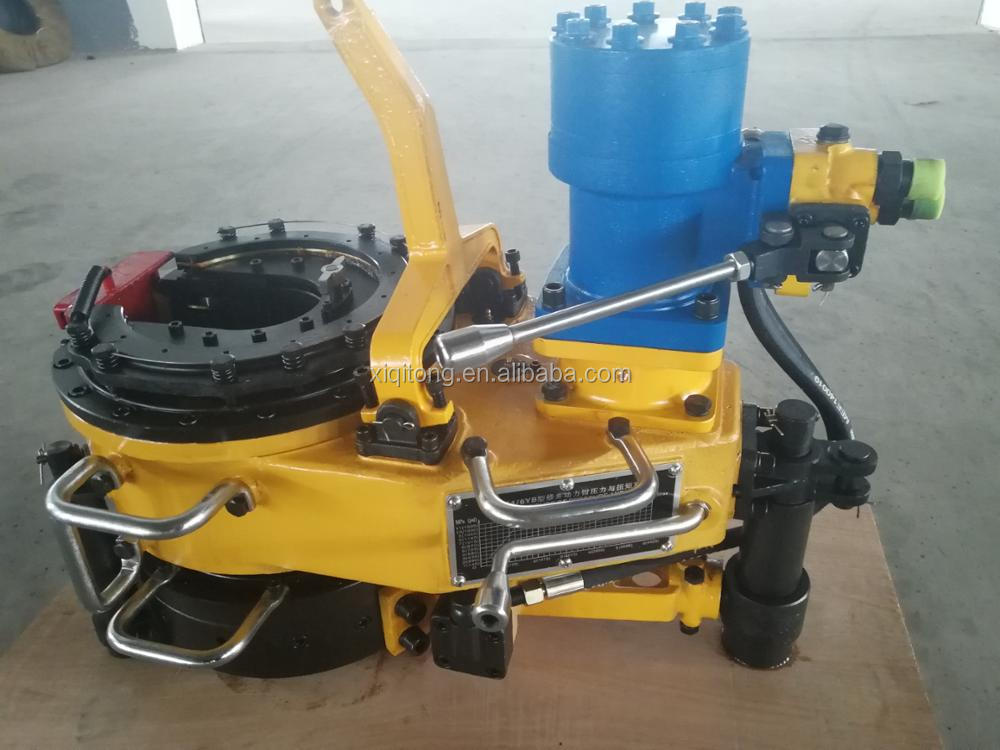

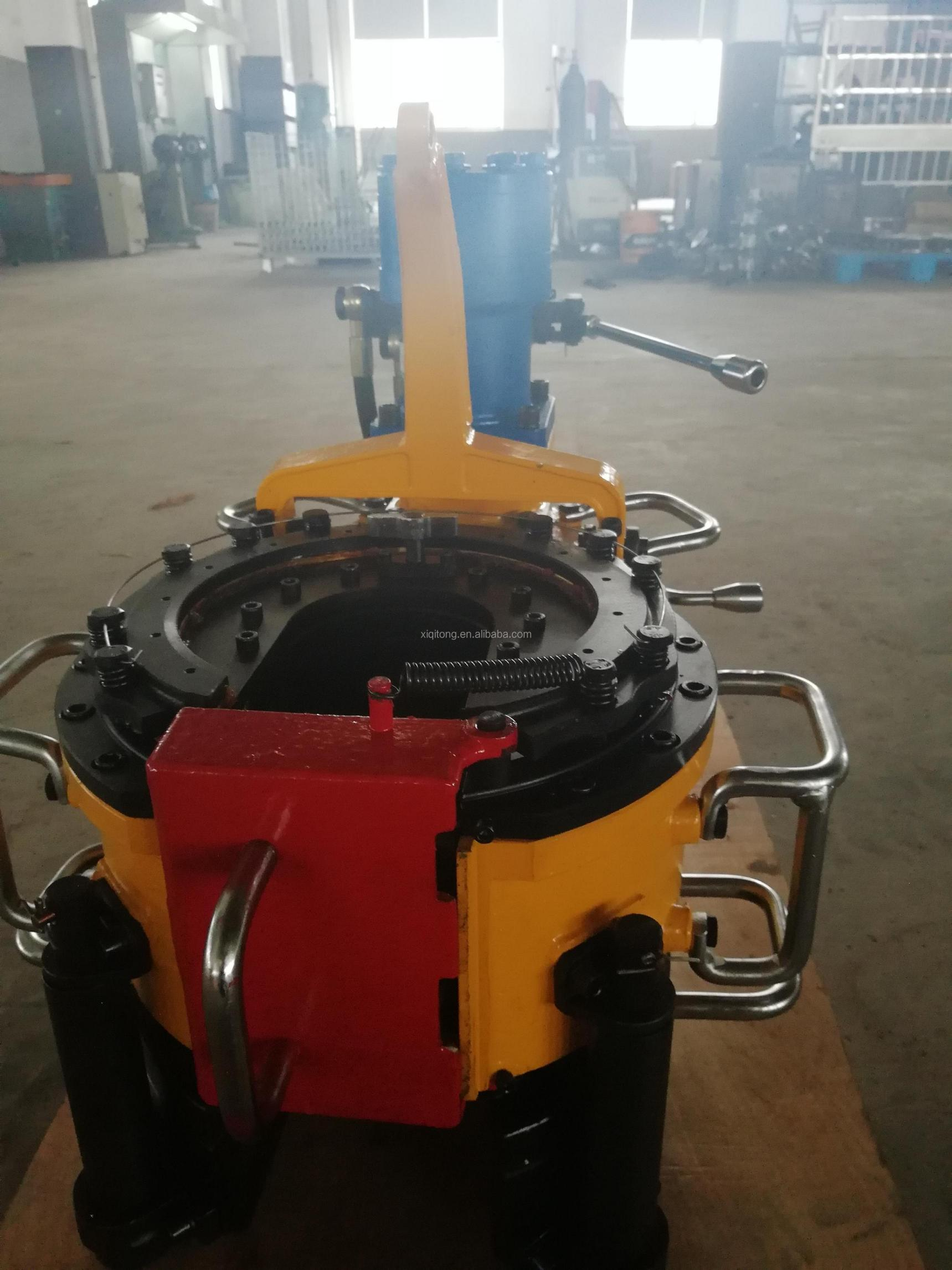

Model | XQ89/3B/3C/3F | XQ114/6B | XQ140/12YA |
Range of Master Tong | φ60-89 2 3/8"-3 1/2" | φ73-114 2 7/8"-4 1/2" | φ73-140 2 7/8"-5 1/2" |
Range of Backup Tong | φ60-114 2 3/8"-4 1/2" | φ73-141.5 2 7/8"-5 9/16" | φ73-156 2 7/8"-6 1/8" |
High Gear Rated of Torque | 1100N.m 810ft lbs | 1500N.m 1106ft lbs | 2600N.m 1918ft lbs |
Low Gear Rated of Torque | 3000N.m 2210ft Ibs | 6000N.m 4425 ft.lbs | 12000N.M 8815 ft.lbs |
High Gear Rated of Speed | 100RPM | 85 RPM | 72r/min |
Low Gear Rated of Speed | 30RPM | 20 RPM | 14r/min |
Low Gear Rated of Speed | 10Mpa 1450Psi | 11Mpa 1600Psi | 12Mpa 1740Psi |
Rated Flow | 80LPM 21GPM | 100 LPM 26 GPM | 120LPM 32 GPM |
Dimension: L*W*H | 650*430*550 25.6"*16.9"*21.7" | 900*515*710 35.4"*20.3"*28" | 1060*618*850 40.3"*22.9"*21.2" |
Weight | 158kg 350lbs | 304kg 670lbs | 520kg 1144 lbs |
Successful Project
Exhibition in Russia
Exhibition in Russia

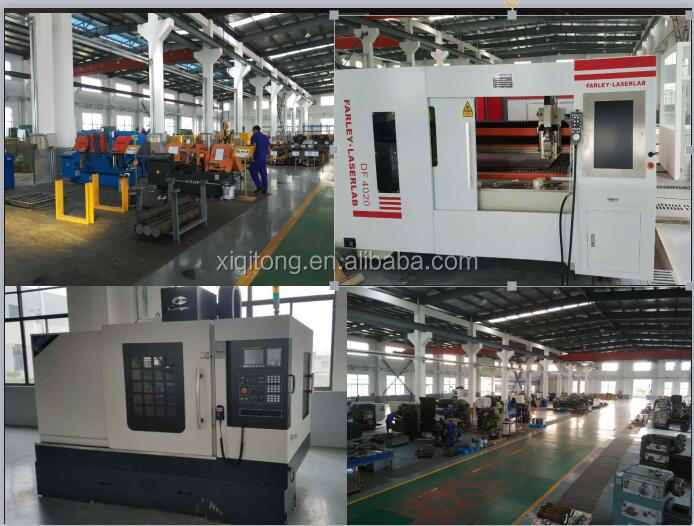

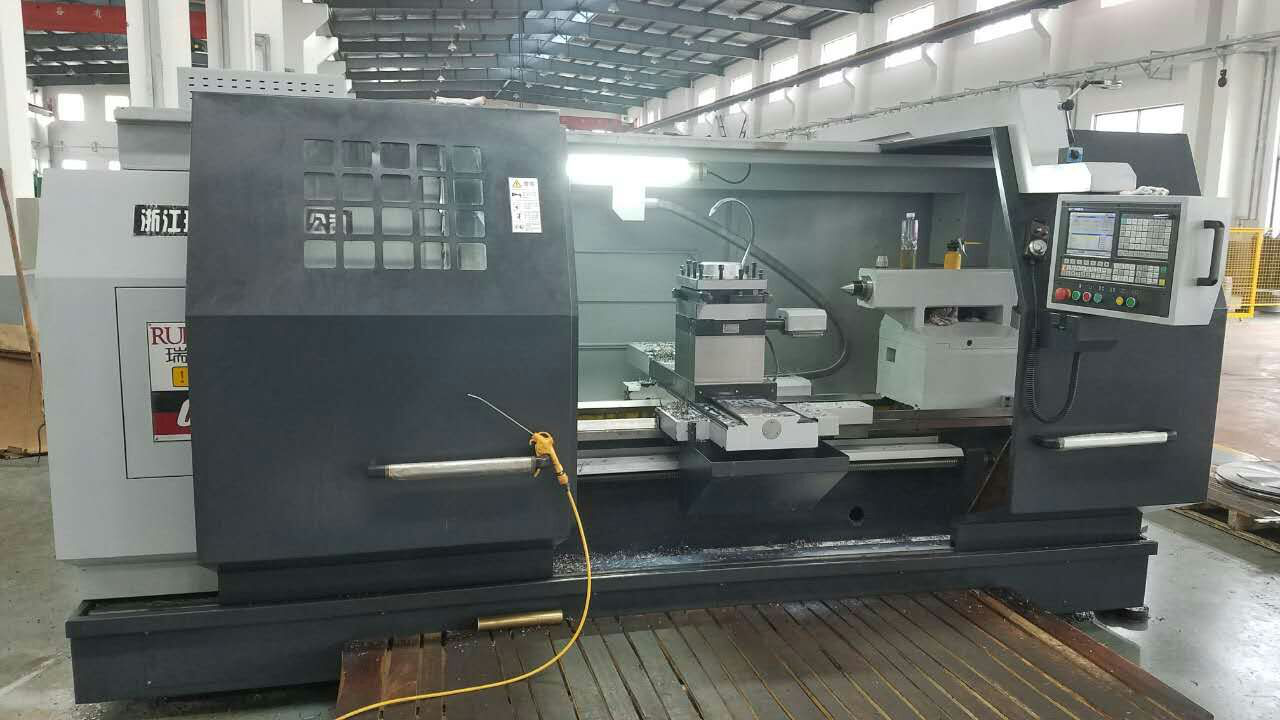

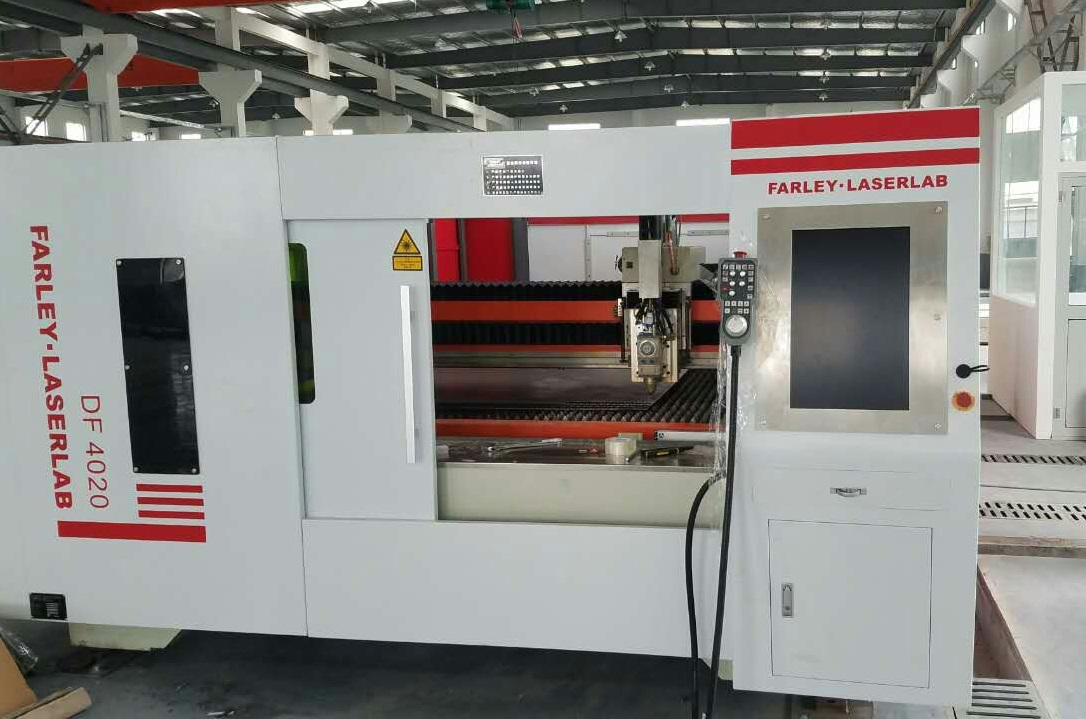

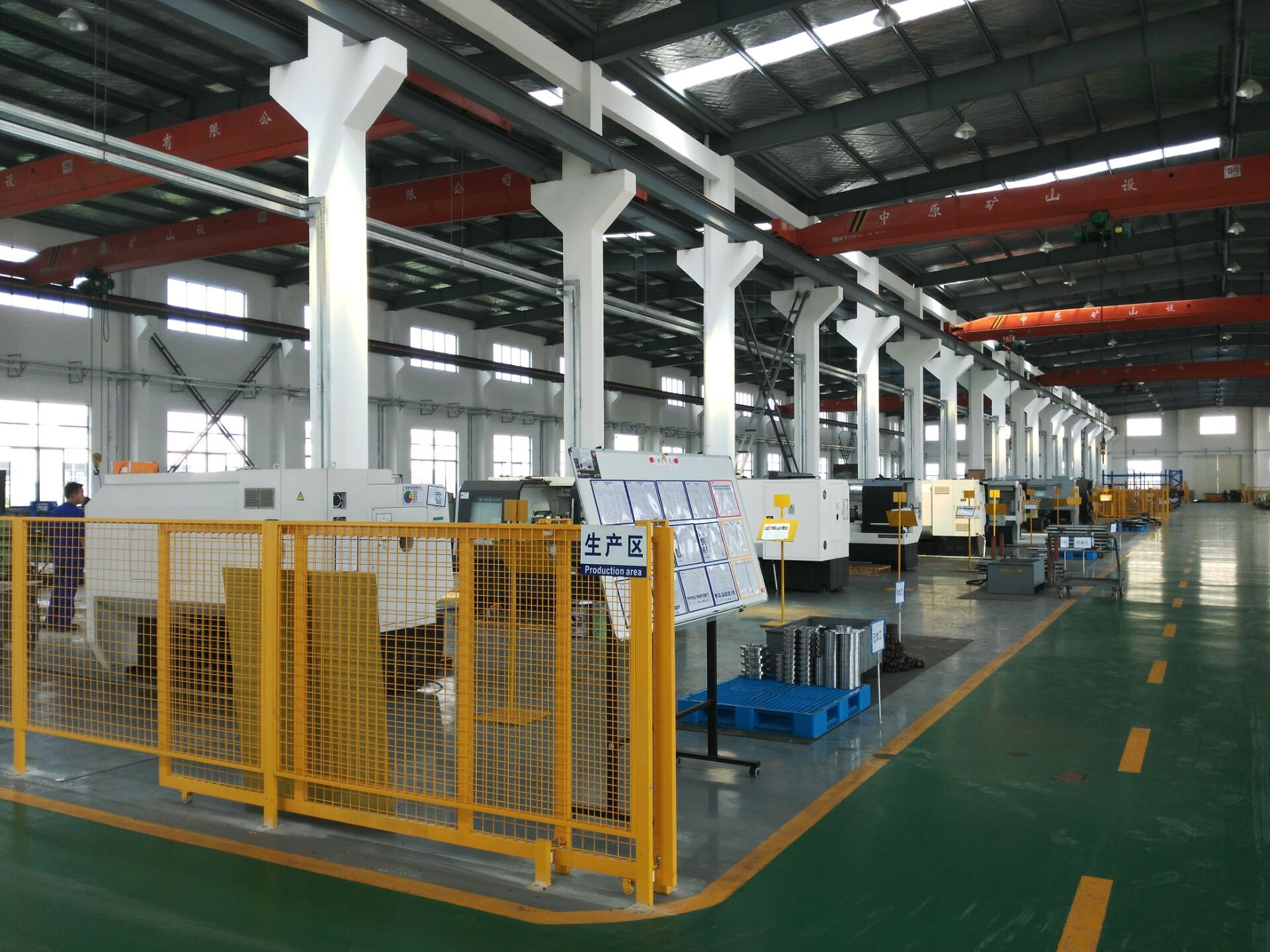

Production equipment

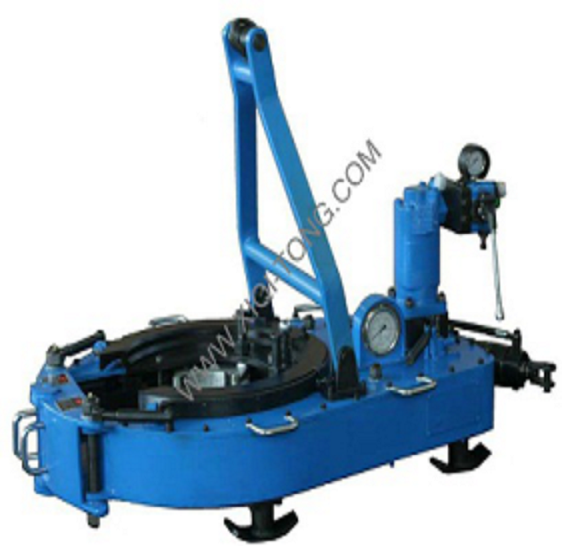

SIMILAR PRODUCTS
view more >>Recommended by seller
Company Information

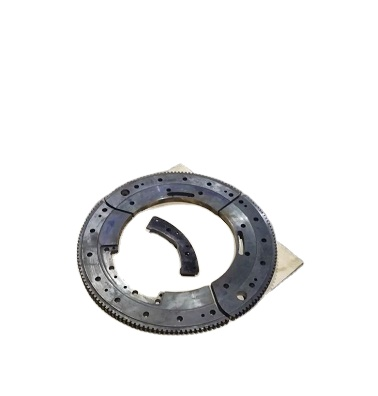

Our company building a relationship with TEDA from 2001, and offering the products such as the jaw plate,dies,die seat, roller, ramp plate, gears and other products which is core components of the master tong head to TEDA.
By the time of the outline time of patents of Teda, we set up our new factory based on our technical and mature accessory. Our company focus on studying and designing and producing the power tong and the accessory about the oilfield. Since the March of 2009, our company settled to the new plant which place on the Nanjing Road of the Jianhu
Economical development Area. Our company considered the requirements for the oversea markets, then set up the new branch company named XIQI.
The branch company concentrate on selling series of products widely used in domestic oil field and handle the business of the oversea markets.
FAQ
Q1. who are we?
We are based in Shanghai, China, start from 2009,sell to Domestic Market(50.00%),Eastern Europe(20.00%),North
America(10.00%),Mid East(10.00%),South America(5.00%),Southeast Asia(3.00%),Western Europe(1.00%),South Asia(1.00%). There are total about 51-100 people in our office.
Q2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
Q3.what can you buy from us?
Wellhead Tool,Wellhead Equipment,Well control Equipment,service
Q4. why should you buy from us not from other suppliers?
Professional technical R&D team, efficient management,advanced company culture, A-grade quality of the products,
Q5. what services can we provide?
Accepted Delivery Terms:CIF,EXW,FCA,Express Delivery Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese,Japanese,Russian
