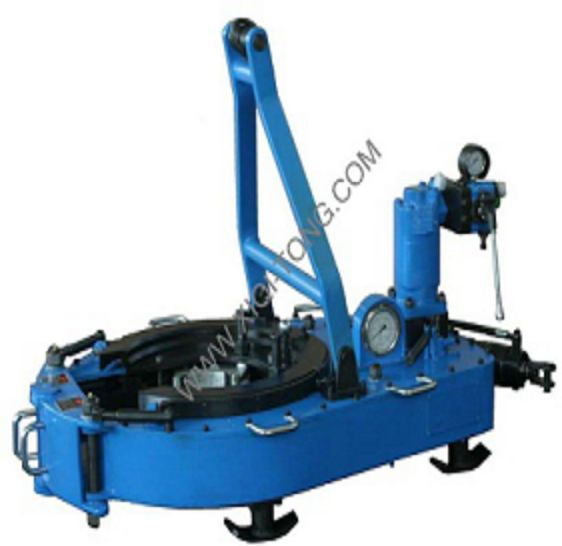

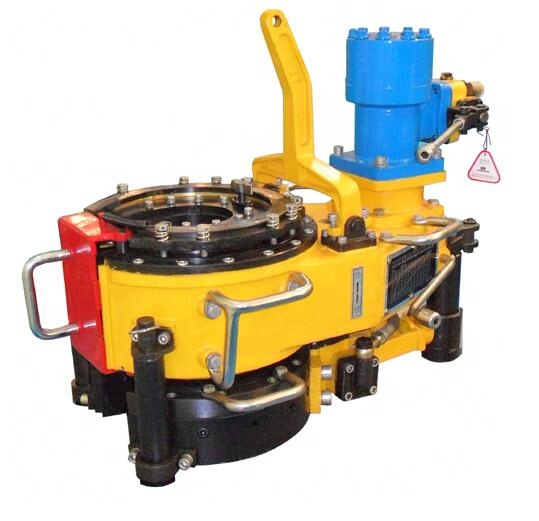

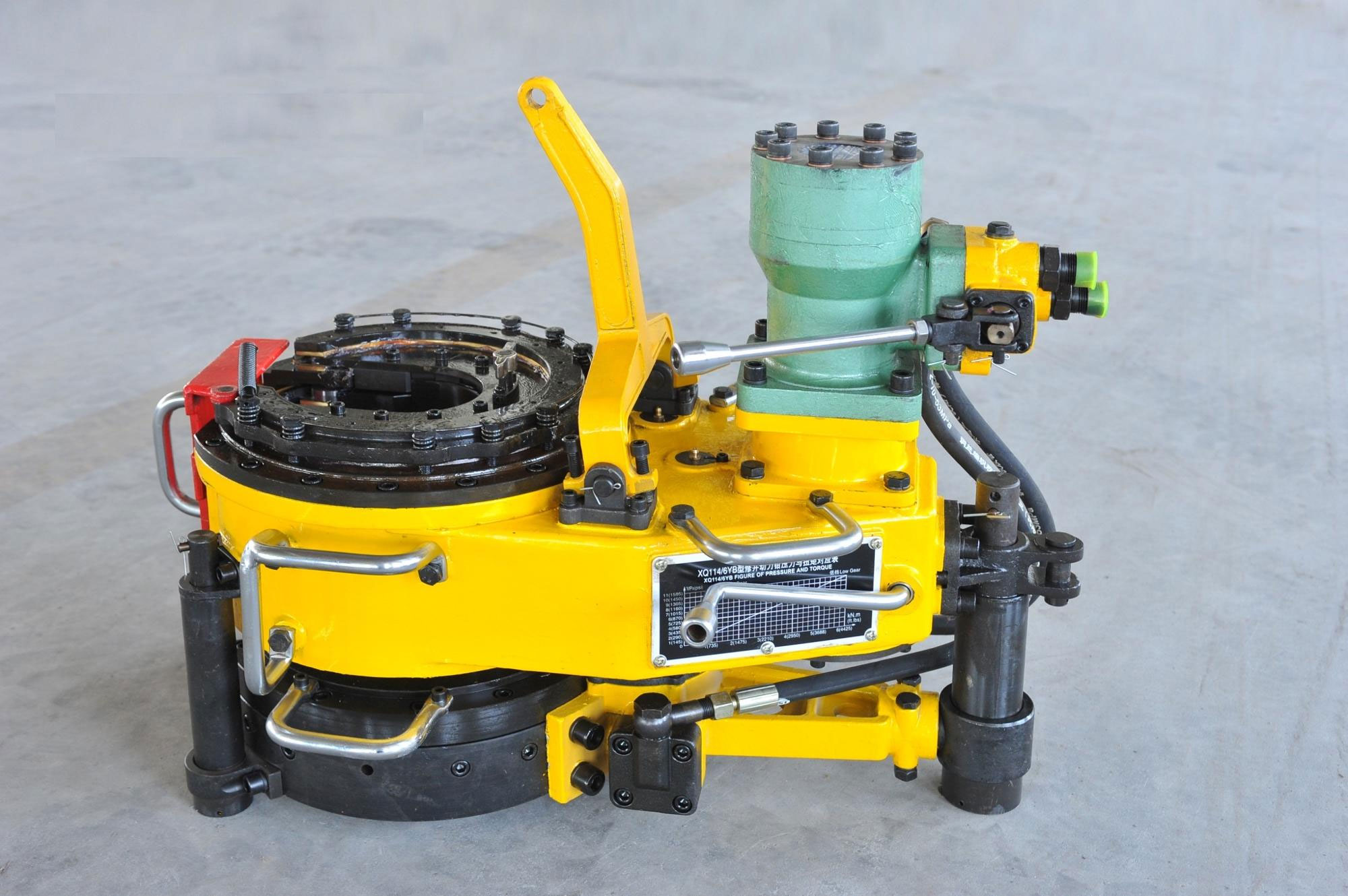

XQ140/12YA

购物车

产品详情

Product Description

1.Compact,light and efficient.

2.The master tong -a high and low gear train.

3.Independent of the each other-The master tong and backup hydraulics operate

4.A new system of the disc brake.

5.Work over is made easy.

6.The backup has been supplied-coupling hoses,connections.

Model	XQ140-12X/12YA	XQ140/20X
Pipe Size Range of Master Tong	φ73~140 2⁷/8"~5¹/2"	φ60~140 2³/8"~5¹/2"
Pipe Size Range of Backup Tong	φ73~156 2⁷/8"~6¹/8" φ89~156 3¹/2"~6¹/8"	φ60~156 2³/8"~6¹/8"
High Gear Rated Torque	2600N.m 1918ft-lbs	2300N.m 1696ft-lbs
Low Gear Rated Torque	12000N.m 8851ft-lbs	20000N.m 14751ft-ibs
High Gear Rated Speed	72r/min	76r/min
Low Gear Rated Speed	14r/min	8.7r/min
Rated Operation Pressure	12Mpa 1740psi	13Mpa 1885psi
Max.Flow	120L/min 32gpm	120L/min 32gpm
Dimension:(LxWxH)	1050x620x900 41.3x24.4x35.4 1024x582x539 40.3x22.9x21.2	1130x610x860 44.5x24x33.9
Weight(Including Backup Tong)	446kg 983lbs <480kg 1057lbs>	560kg 1235lbs
