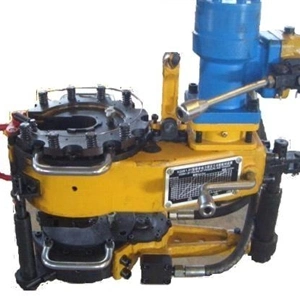

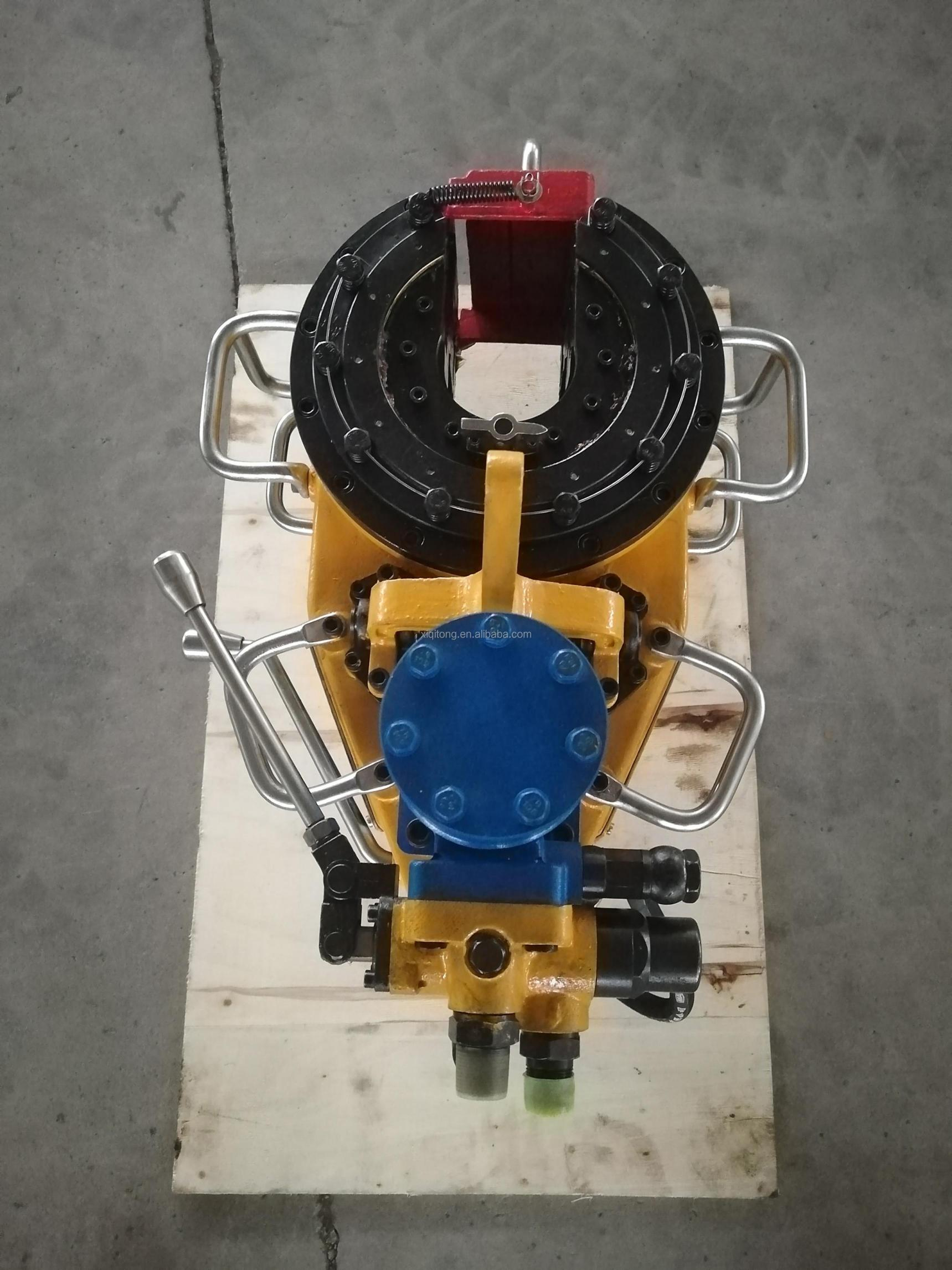

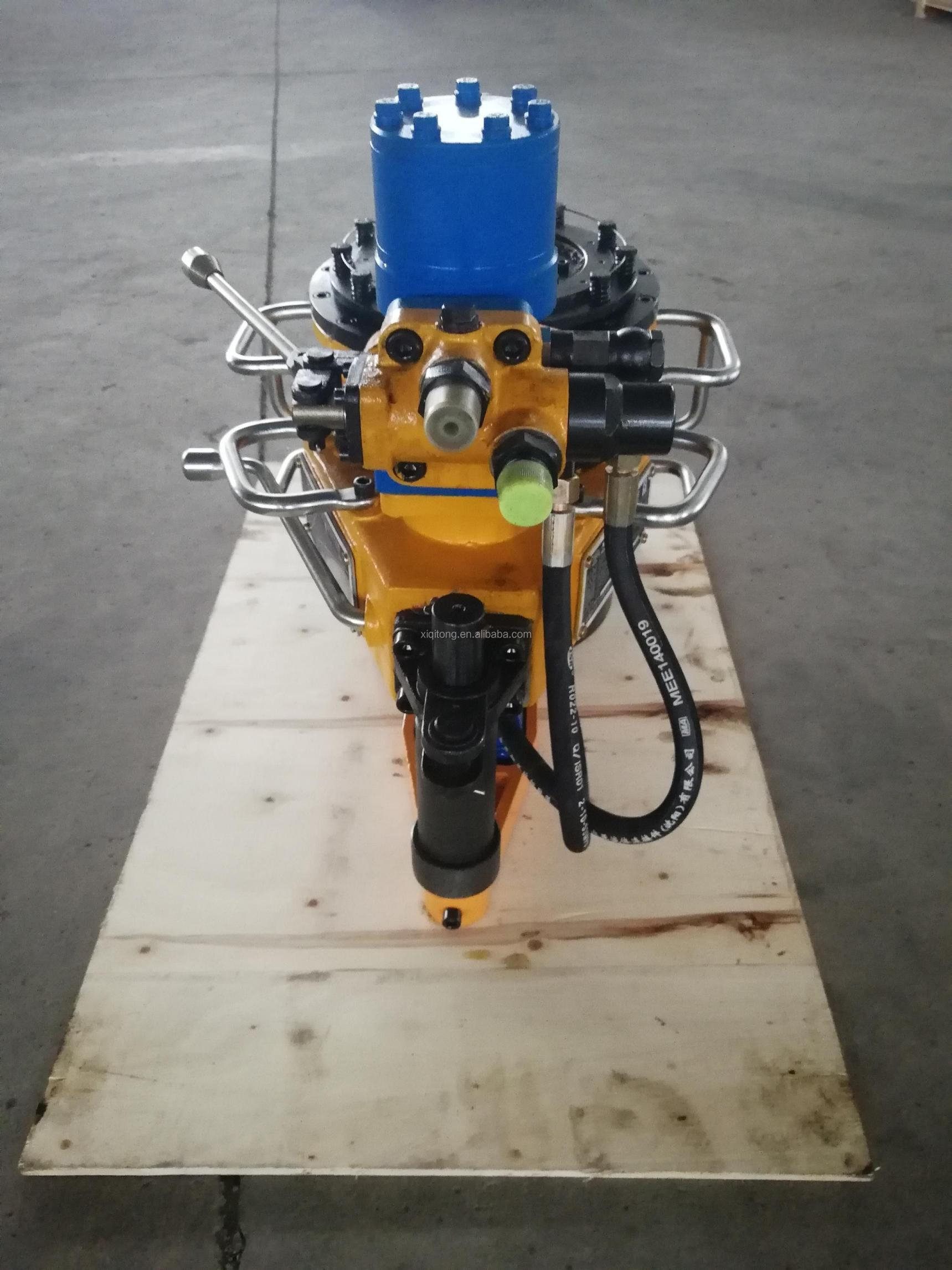

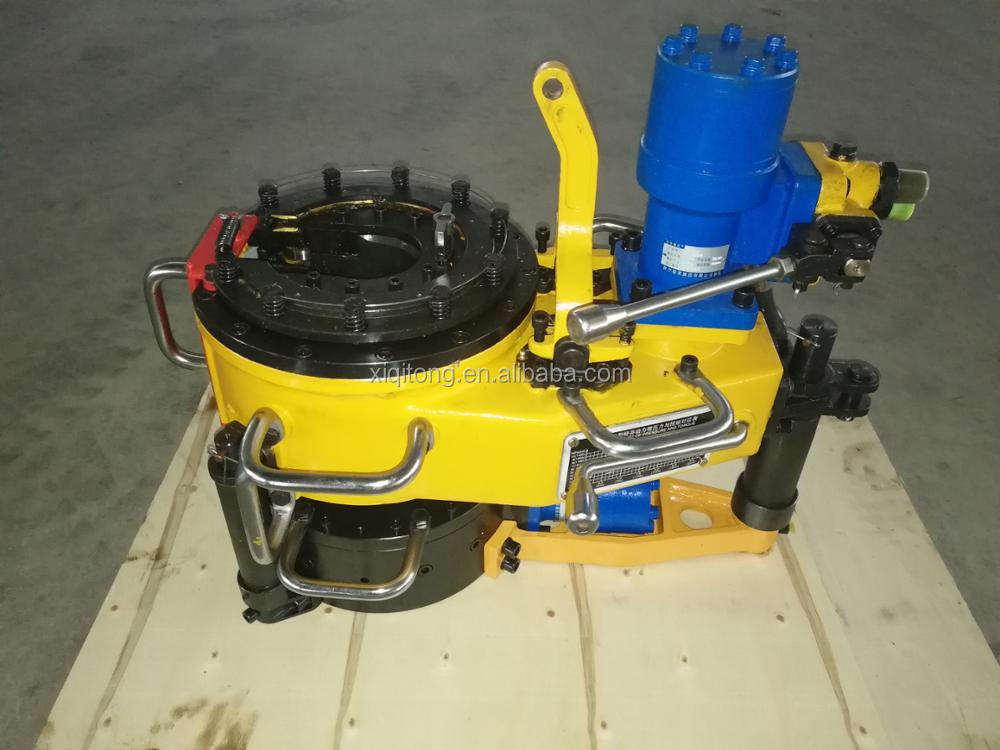

XQ89/3YC

购物车
  • 产品型号
  • 价格
产品详情

Product Description


1.inner curved roller climbing and clipping mechanism.

2.High speed-high gear and large torque-the low gear.

3.The brake mechanism-easy to adjust and repair.

4.Backup tong and master tong

5.The adequate torque

Remark: to clamp the 2 3/8tubing,special dies must be ordered.

Specifications

The series power tong is used for quick make-up/break-out in well service operation. The tong is equipped with hydraulic backup tong and use inner curved cam to clamp.The tongs have the following features:

1.Clamp the tubing use corresponding dies, jaw set or die seat.

2.Torque control valve may be equipped according to customers request.

3.Choose and buy lengthening guide pole assembly,the backup tong can clamp the tubing body.

4.Torque control system may be equipped according to customers request.

Remark:1,to clamp the 23/8tubing,special dies must be ordered for Model 89/3B,3C:2,Advantage of model XQ89/3E:low speed, rated speed is 28 rpm.Dies of backup tong can clamp the underside of tubing coupling, so as to reduce distortion of tubing coupling to prevent conglutination of thread.

Model

XQ89-3YB/3YC/3YF

XQ89-3YE

Pipe Size Range of Master Tong

φ60~89   23/8"~311/2"

φ73~89   27/8"~31/2"

Pipe Size Range of Backup Tong

φ60~114  23/8”~41/2"

φ89~114  31/2"~41/2"

High Gear Rated Torque

1100N.m  811ft-lbs

3000N.m  2213ft-lbs

Lower Gear Rated Torque

3000N.m  2213ft-lbs

3000N.m  2213ft-lbs

High Gear Rated Speed

90r/min

28r/min

Low Gear Rated Speed

30r/min

28r/min

Rated Operation Pressure

10Mpa   1450psi

10Mpa   1450psi

Max.Flow

80L/min  21gpm

90L/min   24gpm

Dimension:L x W x H

650x430x555  25.6x16.9x21.9

740x430x800  29.1x16.9x31.5

Weight(Including Backup Tong)

158kg   348lbs

182kg    401lbs
